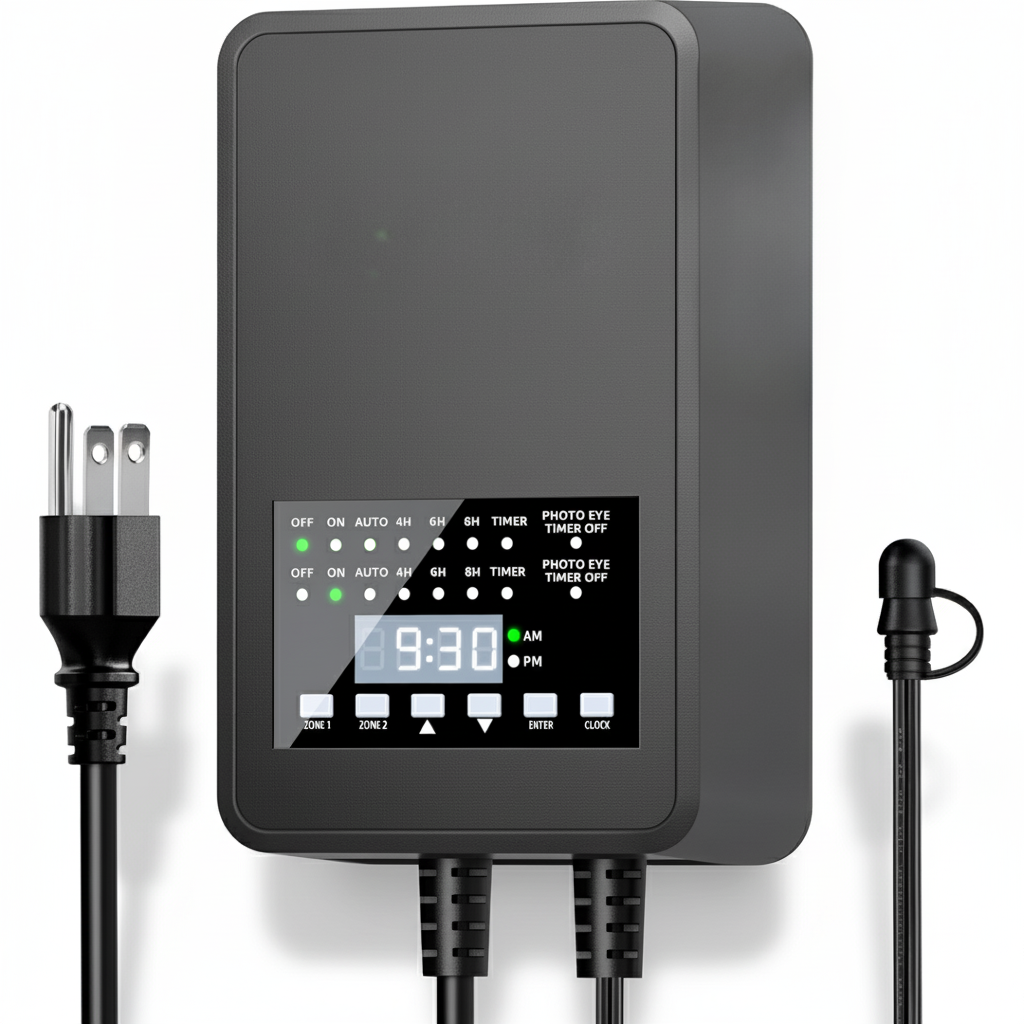

Landscape Lighting Transformer With 2 Control Outputs

Light your outdoor spaces with dependable control. The Landscape Lighting Transformer with 2 Control Outputs delivers stable low-voltage power for paths, gardens, and architectural accents. It converts a standard 120V input to a 12V or boosted 14V output. The unit supports modern LED and legacy halogen loads. Two independent zones simplify tailored scenes. Set different schedules for each area with one device.

This transformer is designed for easy setup. Clear buttons and indicators guide programming. The enclosure resists rain, dust, and seasonal temperature swings. A removable photocell enables flexible placement. Memory preserves settings after outages. Circuit guards your system during faults. Enjoy consistent, efficient lighting with minimal maintenance.

Features

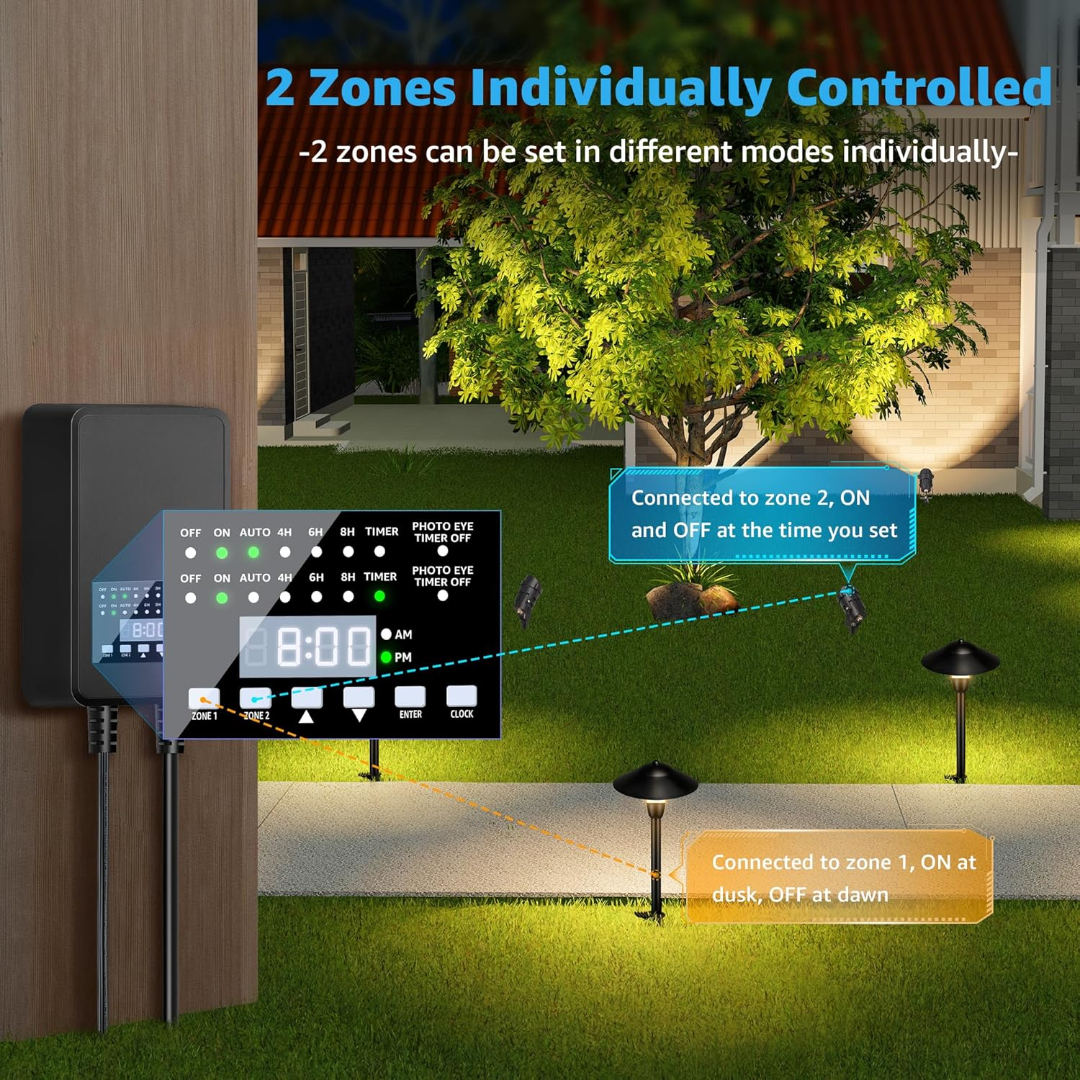

Two independent control zones
Run path lights and spotlights on separate schedules. Adjust modes per zone with dedicated buttons.

Selectable 12V and 14V taps
Match voltage to run length and load. Use 14V to offset the voltage drop on long wires.

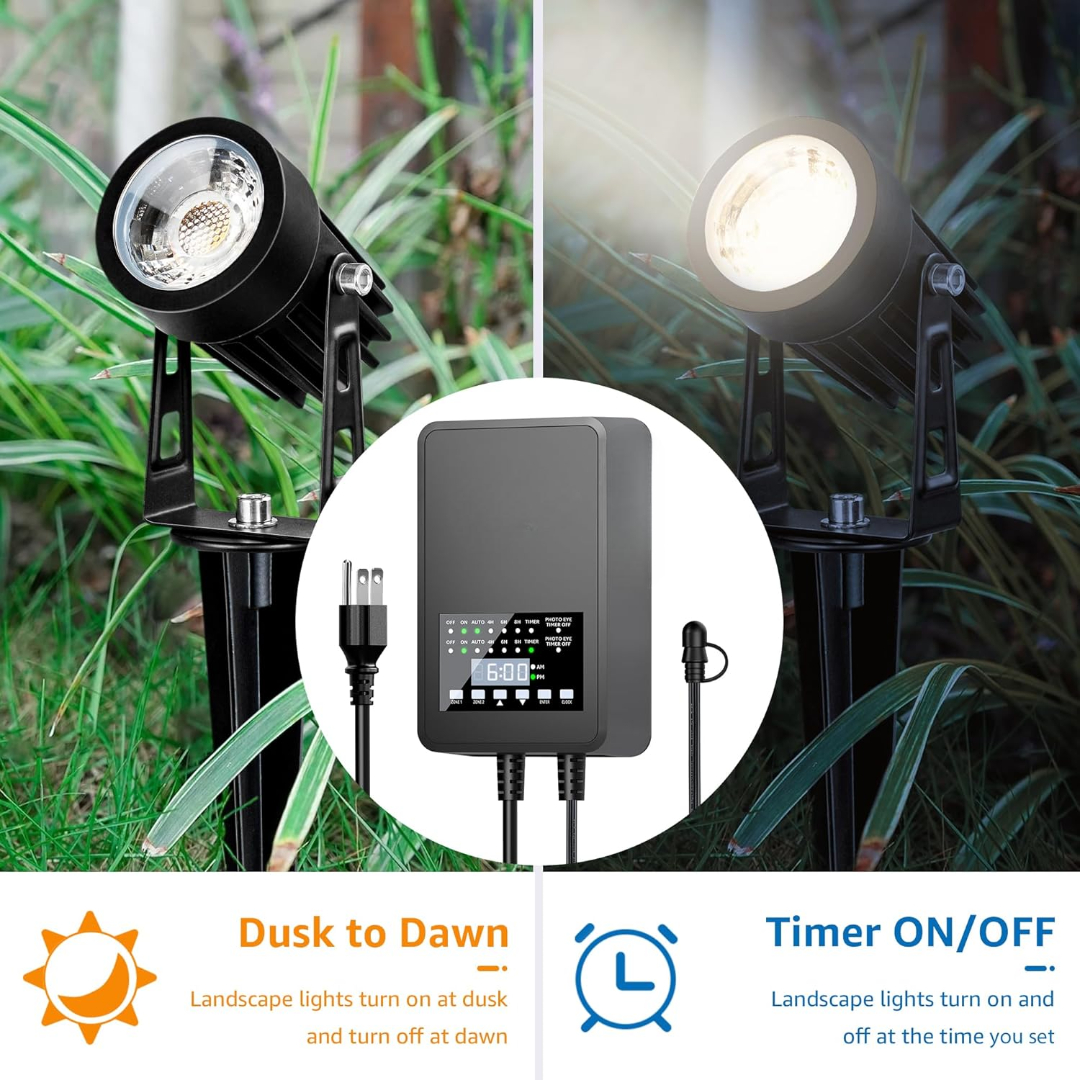

Five operating modes
Choose manual on/off, dusk-to-dawn, countdown after dusk, fixed timer, or photocell-on with timer-off.

External photocell sensor
Mount the sensor where it sees daylight. Place the transformer indoors or in shaded spots if needed.

Weatherproof construction
Sealed housing resists rain and dust. Finish stands up to outdoor conditions.

Circuit breaker
Automatic cut-off protects wiring and fixtures. Reset after resolving the issue.

Settings memory
Power returns, and your schedules resume. No need to reprogram after outages.

Quiet, efficient output
Low hum and stable voltage support LED reliability. Reduce flicker and dimming on long runs.

Simple installation
Wall-mount the case. Land wires on labeled terminals. Program zones in minutes.

Suitable For

• Front walk and driveway lighting
• Garden beds and tree uplighting
• Patio, deck, and step illumination
• Architectural accents and signage
• Pergolas, gazebos, and fences
• Holiday or event schedules by zone
• Builds and retrofit upgrades

Care Instructions

• Mount above grade on a vertical surface.
• Keep the bottom drip loop clear of soil and mulch.
• Clean housing with mild soap and water only.
• Check terminal screws each season for tightness.
• Keep the photocell lens free of debris and cobwebs.
• Use outdoor-rated low-voltage cable sized for the run length.
• Balance wattage across both zones for better performance.
• Reset the breaker only after fixing wiring faults.
• Store instructions inside a weatherproof sleeve nearby.

Why Choose This Landscape Lighting Transformer with 2 Control Outputs

• True dual zone control. Schedule two areas independently.
• Voltage flexibility. 12V and 14V taps help fight voltage drop.
• Multiple automation options. Match behavior to your routine.
• Outdoor durability. Weatherproof housing for year-round use.
• Protected and reliable. Circuit breaker and stable output.
• Easy placement. External photocell expands installation sites.
• Low maintenance. Memory saves time after outages.
• LED-friendly power. Supports consistent brightness on long runs.
• Clear interface. Intuitive buttons and status indications.

Planning and Installation Tips

Map each zone before wiring. Group fixtures with similar schedules. Calculate total wattage per zone and stay under 80% capacity. Choose cable gauge based on distance. Long runs may benefit from the 14V tap. Keep spans short or use multiple home-run lines. Mount the photocell where sunrise and sunset are visible. Avoid porch lights shining on the sensor. Label zone outputs for future service.

If the lights flicker at the far end, measure the voltage under load. Switch that run to the 14V tap if needed. For seasonal décor, dedicate one zone to a countdown mode. Keep wire connections above grade in rated junctions. Use gel-filled connectors for buried splices. Always follow local electrical codes.

The Dual Zone Landscape Transformer delivers professional control in a homeowner-friendly package. Independent zones simplify scenes and scheduling. Selectable 12V and 14V taps improve brightness consistency across long runs. Weatherproof construction and circuit support reliable operation. With flexible modes and a smart external photocell, this unit powers beautiful, efficient outdoor lighting every night.
